12 W/ft Harsh Environment Constant-Wattage Heating Cable, PFA Jacket, 240V

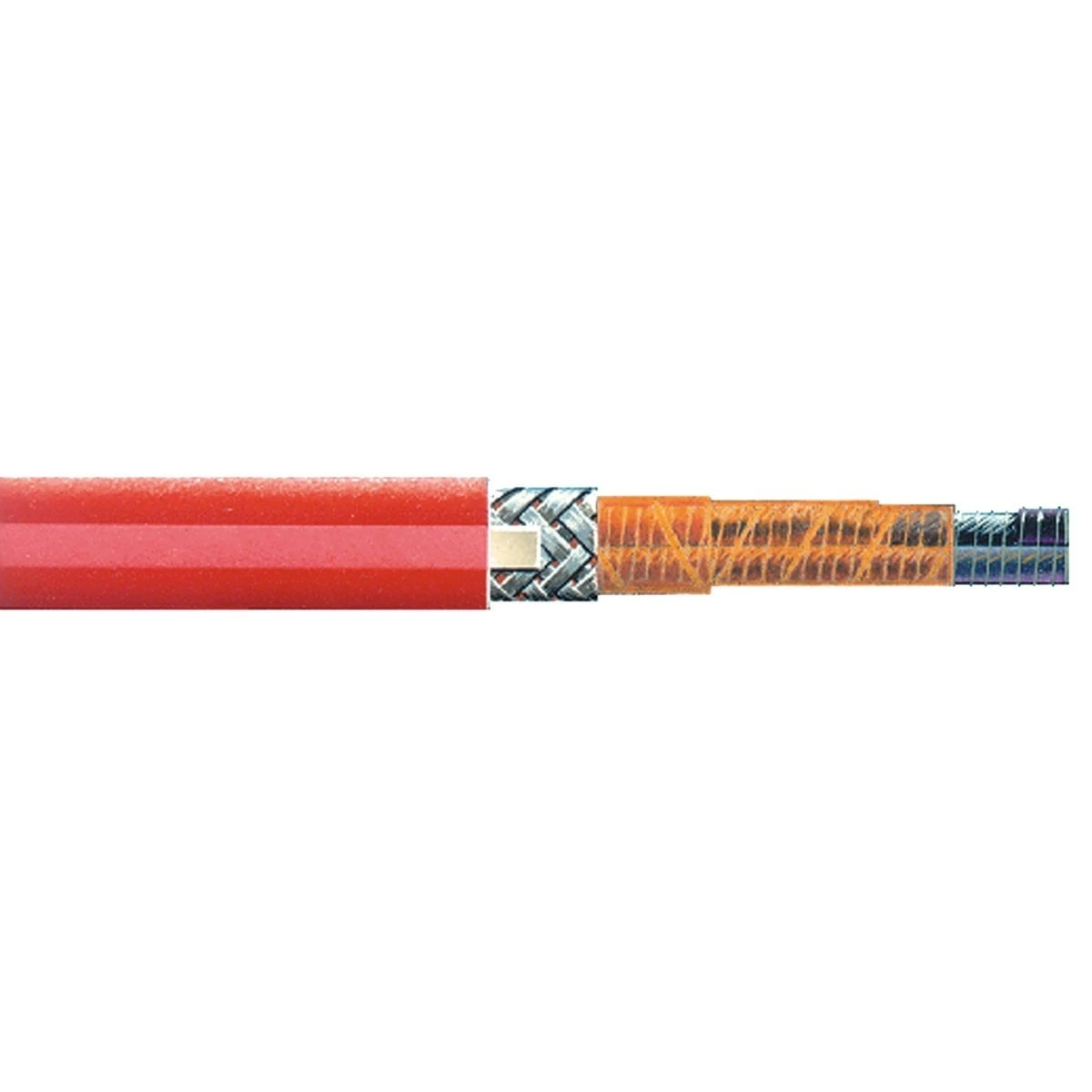

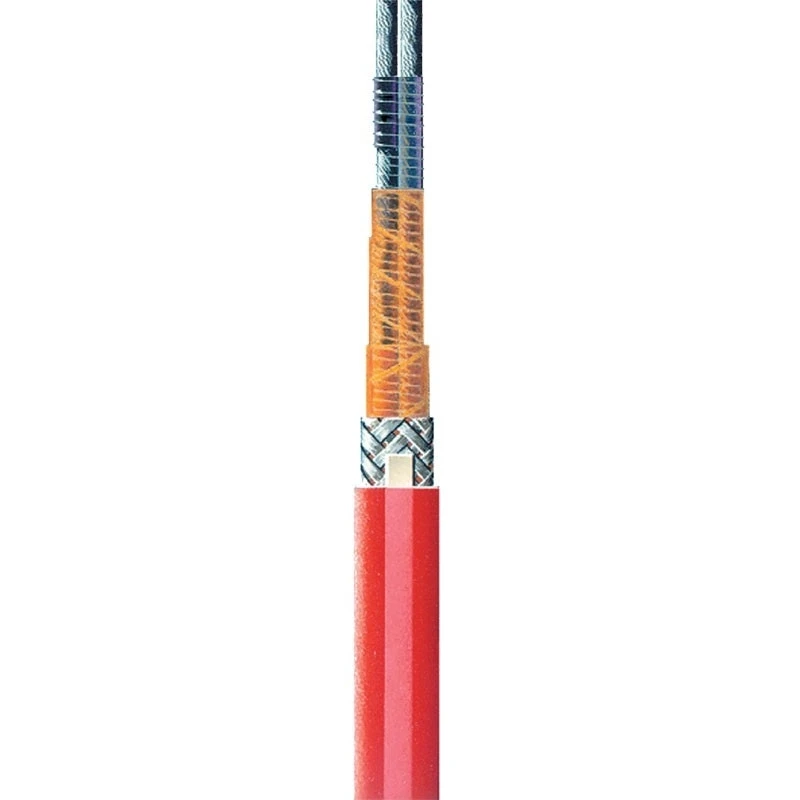

19BN36 is a harsh environment constant wattage heating cable with a PFA jacket. This cable operates at 240 VAC with a cable type of 12 watts/ft, and can be cut to preferred length at the job site. The maximum exposure temperature is 500&deg F (260&deg C). Product is moisture, chemical, flame, and radiation resistant, making it great for temperature applications such as freeze protection, viscosity control, high temperature process control, and more. This product requires a temperature controller for safe operation.

Key benefits:

• Power remains constant regardless of temperature
• Dimensions: 0.2″ x 0.3″ (5mm x 8mm)
• 41lb (19kg) per 500-foot (152m) spool
• 12 W/ft (39 W/m)
• 12AWG bus wires
• Ideal for long runs

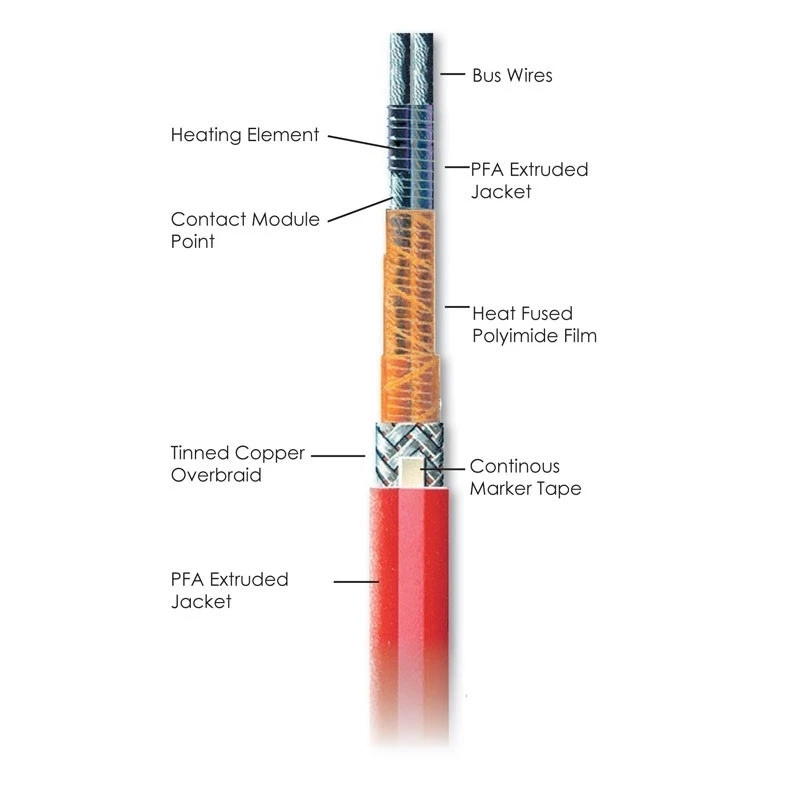

• Tension wrapping holds resistance wire in place, even under extreme bending
• 1 year warranty
• Proudly Made in the USA

FM approved for use in ordinary locations and the following hazardous locations:

• CID2, Groups B, C, D
• CIID2, Groups F, G
• CIIID2

Applications include:

• Freeze protection
• Viscosity control
• High temperature process control
• Asphalt plants
• Oil refineries
• Mines
• Chemical and petrochemical processing areas
• Other explosive and corrosive atmospheres
• Severe arctic cold
