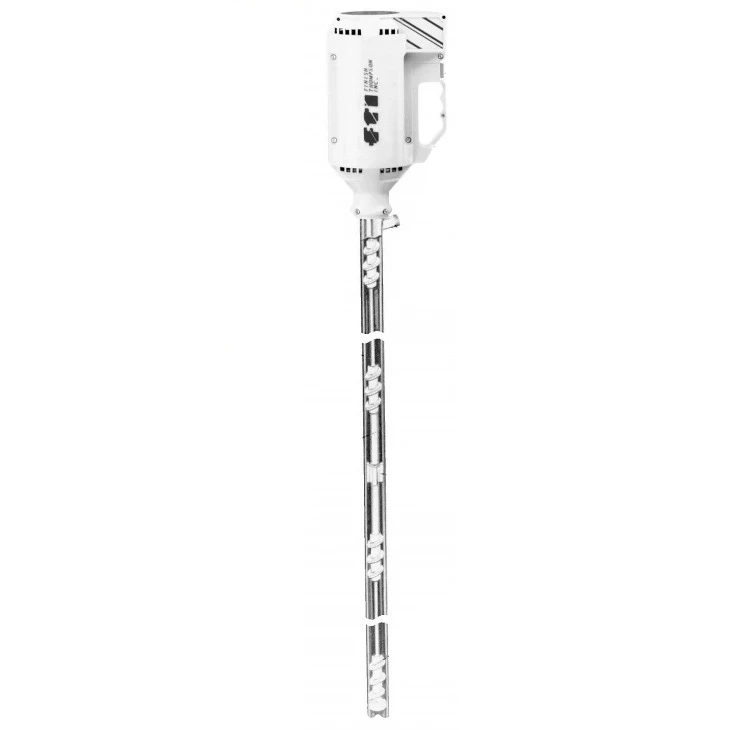

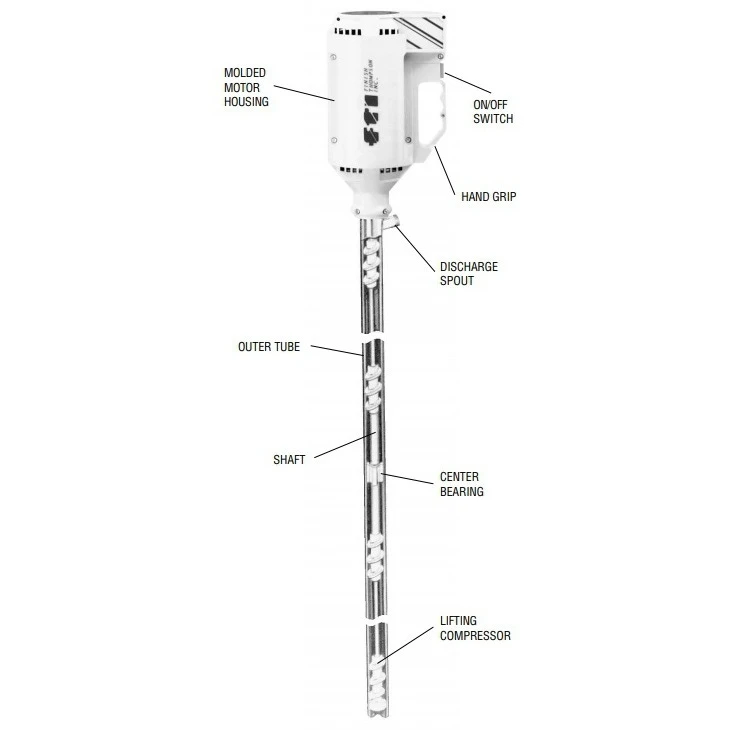

30 Gallon Drum Pump W/27″ Stainless Steel Tube, 1/4 HP TEFC Motor, 400 Cps, 10 Gpm (TT Series)

This is a totally enclosed fan cooled (TEFC) motor drum pump with a 1.5″ Dia. x 27″ L 316 stainless steel tube and a max flow of 10.0 gpm and max viscosity of 400 cps. This 30 gallon drum or carboy pump is suitable for semi-viscous liquids up to 200° F and can handle many corrosives, flammables, etc. in pure applications. The max specific gravity of this sealed drum pump is 1.80. With a smaller diameter, this drum pump tube can fit smaller bung openings.

The TEFC motor offers increased protection against dirt and moisture compared to open electric motors as it does not allow outside air to circulate freely throughout the interior of the motor. These motors tend to have a longer lifespan compared to open drip proof (ODP) motors. Drum pumps are ergonomic as they can eliminate the need to lift containers during liquid transfer. The stainless steel tube is 27″ for use with 30 gallon drums, carboys and other similar-sized containers. Stainless steel is ideal for flammables such as fuels and solvents compared to plastic alternatives. The discharge connection is a 1″ hose barb. This drum pump is sealed making it ideal for pure applications.

Key benefits:

• Totally enclosed fan cooled (TEFC) motor
• 316 stainless steel tube
• Sealed unit
• For use with containers with less than 27″ depth
• Suitable for semi-viscous liquids & pure applications
• For use up to 200° F | 66° C
• Max flow 10.0 gpm
