55 Gallon Drum Pump W/ 40″ Polypropylene Tube, 1/2 HP TEFC Motor, 500 Cps, 40 Gpm (PF Series)

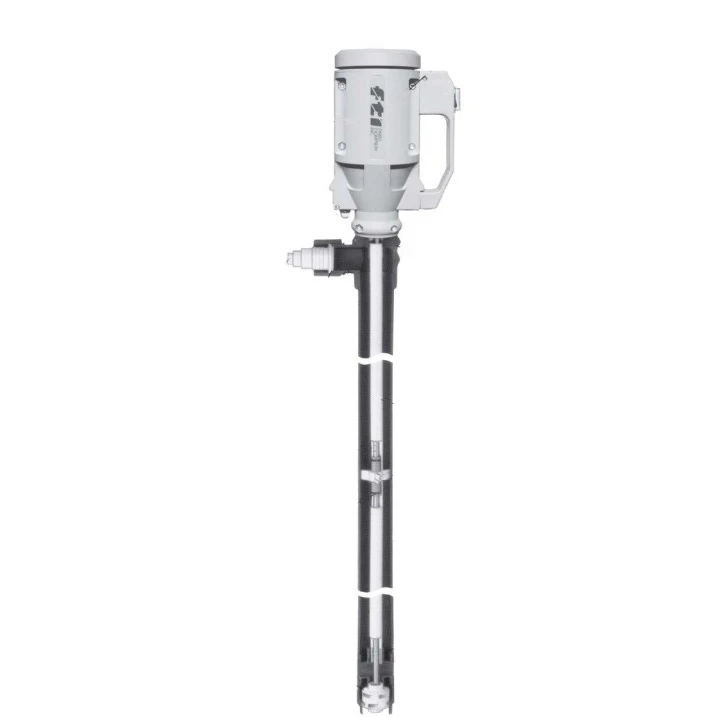

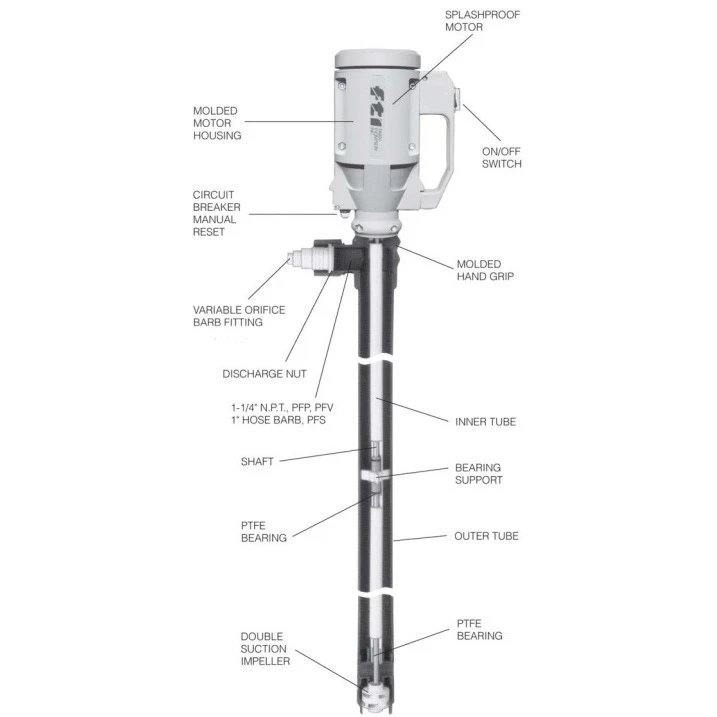

This is a totally enclosed fan cooled (TEFC) motor drum pump with a 2″ Dia. x 40″ L polypropylene tube. The max flow of this drum pump is 40.0 gpm with the ability to handle light to medium viscosity liquids up to 500 cps. Polypropylene (PP) has good chemical resistance allowing this unit to be suitable for container-to-container transfer of many acids, caustics, corrosives and flammables. Sealless and high performance, the barrel pump has dry run capability and a double suction impeller making it suitable for high flow applications. This drum pump can handle up to 160° F and a maximum specific gravity of 1.83.

The TEFC motor offers increased protection against dirt and moisture compared to open electric motors as it does not allow outside air to circulate freely throughout the interior of the motor. These motors tend to have a longer lifespan compared to open drip proof (ODP) motors. Drum Pumps are ergonomic as they can eliminate the need to lift containers during liquid transfer. The plastic tube is 40″ for use with 55 gallon drums and other similar-sized containers. The discharge connection is a variable orifice barb. Versatile for multiple applications across industries, the drum or barrel pump offers easy disassembly for cleaning.

Key benefits:

• On/Off switch
• Totally enclosed fan cooled (TEFC) motor
• Polypropylene pump tube construction
• Dry run capability
• For use with containers less 40″ depth
• Handles light to medium viscosity liquids (Max. Viscosity 500 cps)
• For use up to 160° F
• Max flow 40.0 gpm
