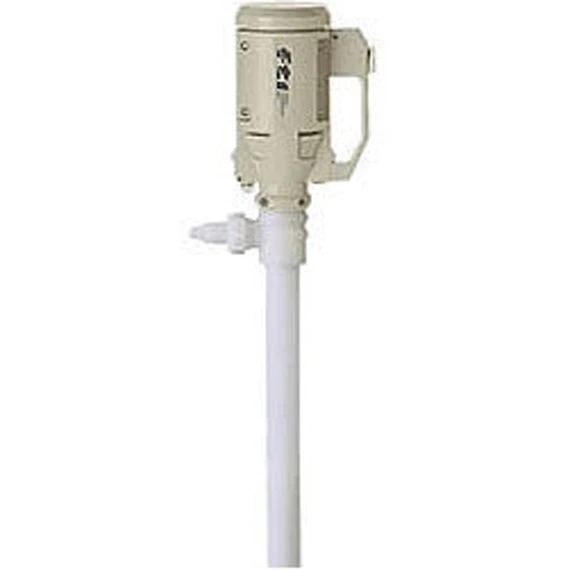

55 Gallon Drum Pump W/ 40″ Pure PVDF/PP Tube, 1/2 HP TEFC Motor, 200 Cps, 20 Gpm (TB Series)

This is a totally enclosed fan cooled (TEFC) motor drum pump with a 1.66″ Dia. x 40″ L pure polypropylene and pure PVDF tube and a max flow of 20.0 gpm and max viscosity of 200 cps. This 55 gallon drum pump is suitable for low to medium viscosity chemicals such as bleach, nitric acids, hydrochloric acids, sulfuric acids, etc. at temperatures up to 150° F. The max specific gravity of this drum pump is 1.40. With a smaller diameter, this drum pump tube can fit smaller bung openings.

The TEFC motor offers increased protection against dirt and moisture compared to open electric motors as it does not allow outside air to circulate freely throughout the interior of the motor. These motors tend to have a longer lifespan compared to open drip proof (ODP) motors. Drum pumps are ergonomic as they can eliminate the need to lift containers during liquid transfer. The plastic tube is 40″ for use with 55 gallon drums and other similar-sized containers. The discharge connection is a 1″ hose barb. This drum pump is lightweight and rated for continuous duty.

Key benefits:

• Totally enclosed fan cooled (TEFC) motor
• Pure polypropylene and pure PVDF pump tube construction
• For use with containers with less than 40″ depth
• Suitable for low to medium viscosity chemicals such as bleach, nitric acids, hydrochloric acids, sulfuric acids, etc.
• For use up to 150° F | 66° C
• Max flow 20.0 gpm
