BriskHeat® 10 W/ft Low-Temperature Self-Regulating Heating Cable, Hazardous Area, Fluoropolymer Jacket, 240v

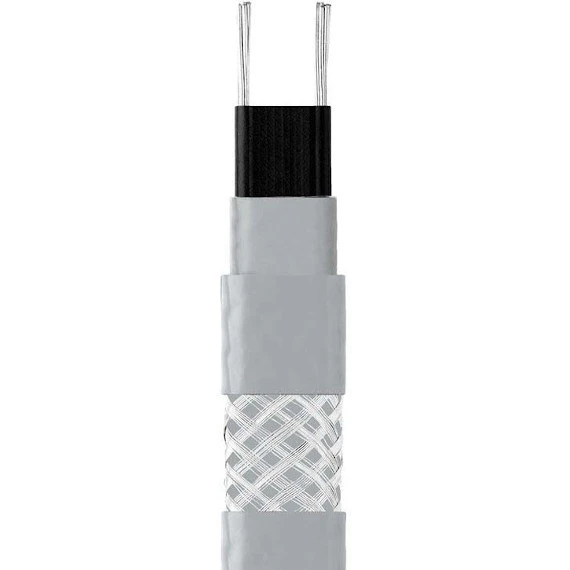

19BZ77 is a self-regulating heating cable with a tinned copper metal braid and fluoropolymer overjacket. Heating cable automatically adjusts heat output based on surface and ambient temperatures, and is approved for specified hazardous areas. This low-temperature application cable, ideal for freeze protection and low-temperature process maintenance, provides a maximum continuous maintenance temperature of 149° F (65° C). Intermittent exposure temperature ranges from -20° F to 185° F (-29° C to 85° C). Moisture-, chemical- and flame-resistant, cable operates at 240 volts with an output wattage of 10 watts/ft (31 watts/m). Product is sold by the foot (minimum 50′ roll), can be cut to preferred length and terminated in the field. No temperature controller is required.

Key benefits:

• Automatically adjusts heat output based on surface temperature and ambient conditions
• Dimensions: 0.6″ x 0.3″ (15mm x 7mm)
• 48 lbs. (22kg) per 500′ (152m) spool
• Output wattage: 10w/ft (31w/m)
• Designed for wet or harsh chemical environments
• Safe to overlap and insulate
• Safe for indoor or outdoor use
• Ideal for long runs
• FM Approved: Non-Hazardous locations or Hazardous locations CID1 and CID2, Groups B, C, D; CIID2, Groups F, G; CIIID1 and CIIID2; 3, 5, 8w/ft T6; 10w/ft T5
• CSA Approved: Non-Hazardous locations 130-03 (-G, -W, -S); Hazardous locations CID1 and CID2, Groups B, C, D; CIID1 and CIID2, Groups E, F, G; CIIID1 and CIIID2; 3, 5, 8w/ft T6; 10w/ft T5
• ATEX Approved: Hazardous locations Ex e IIC T** II 2 GD Gb; Ex tb IIIC T**° C Db; **3, 5, 8w/ft T5/T85° C; **10w/ft T4/T100° C
• IEC/IECEx Approved: Hazardous locations Ex e IIC T** II 2 Gb; Ex tb IIIC T**° C Db; **3, 5, 8w/ft T5/T85° C; **10w/ft T4/T100° C
• Made in the USA
