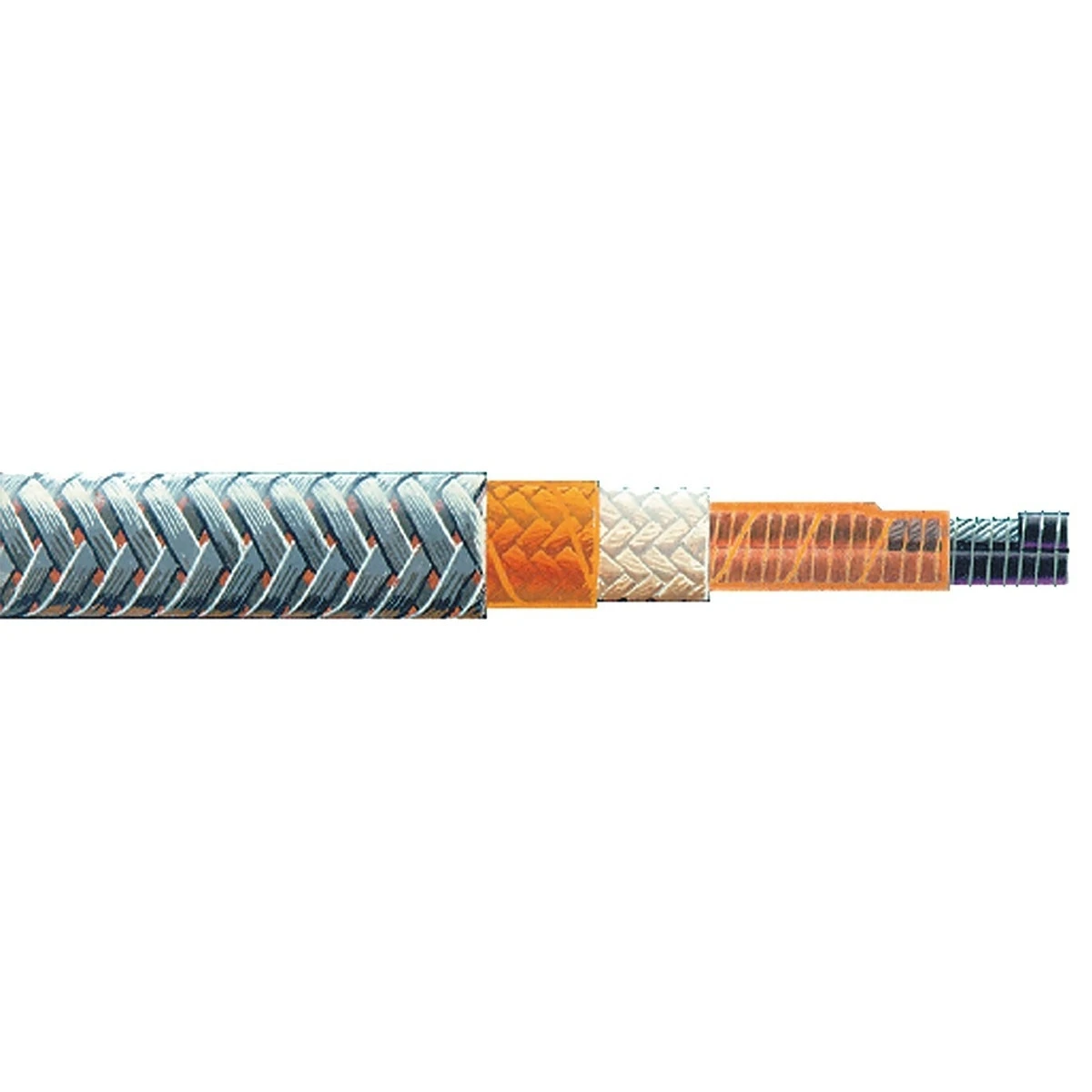

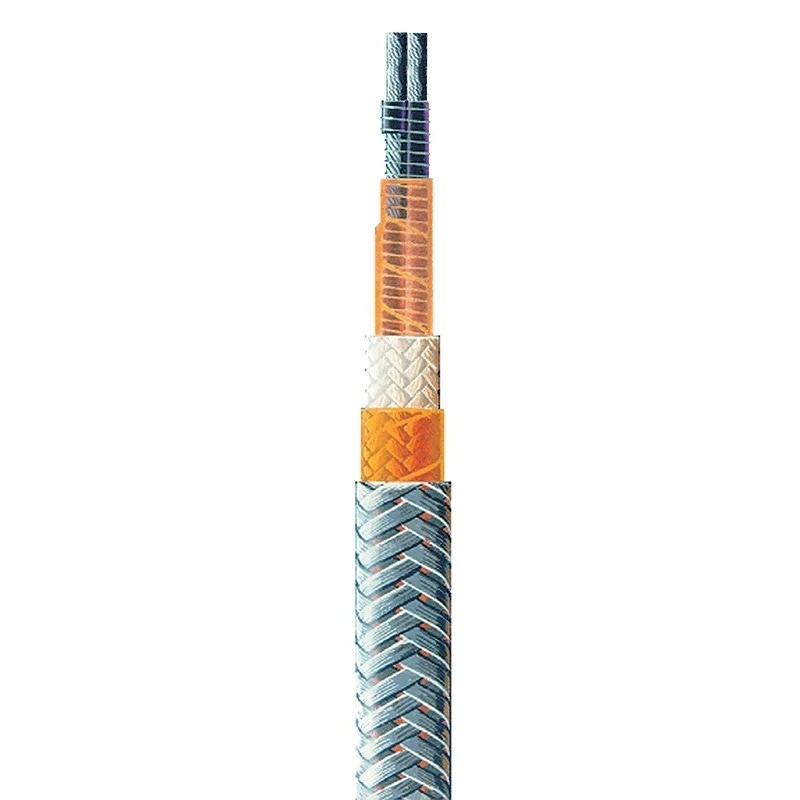

BriskHeat® 12 W/ft Constant-Wattage Heating Cable, Tinned Copper Braid (480V)

19BN53 is a constant wattage heating cable with a tinned copper overbraid. This cable operates at 480 VAC with a cable type of 12 watts/ft, and can be cut to preferred length at the job site. The maximum exposure temperature is 500&deg F (260&deg C). Product is moisture, chemical, flame, and radiation resistant, making it great for temperature applications such as freeze protection, viscosity control, high temperature process control, and more. Other cable types and voltages available upon request. This product requires a temperature controller for safe operation.

Key benefits:

• Power remains constant regardless of temperature
• Dimensions: 0.2″ x 0.3″ (5mm x 8mm)
• 45lb (20kg) per 500-foot (152m) spool
• 12 W/ft (39 W/m)
• 12AWG bus wires
• Ideal for long runs

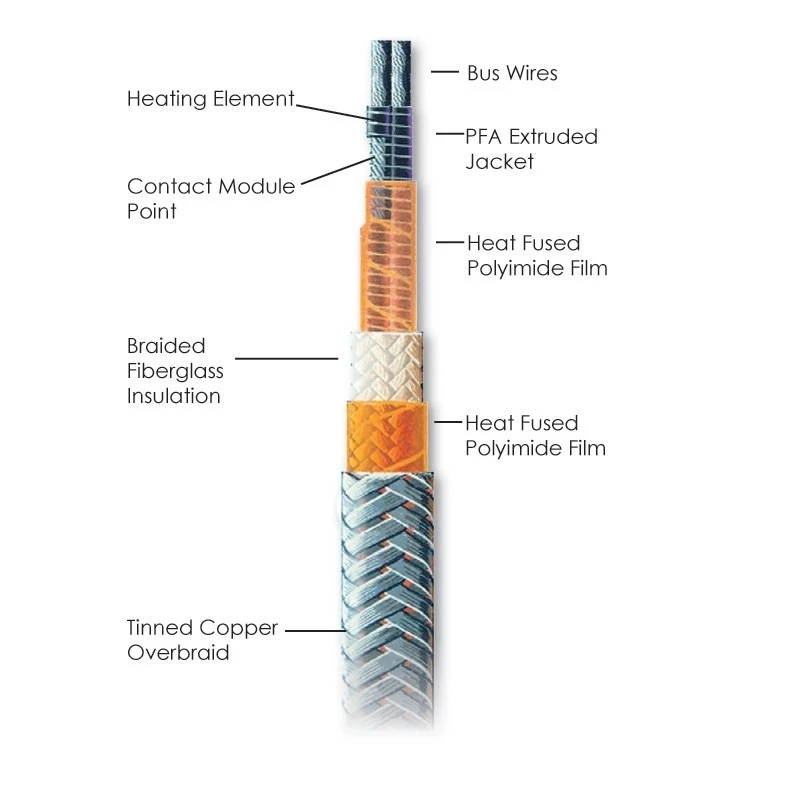

• Tension wrapping holds resistance wire in place, even under extreme bending
