BriskHeat® 15 W/ft Mid-Temperature Self-Regulating Heating Cable, Hazardous Area, Copper Braid, 120v

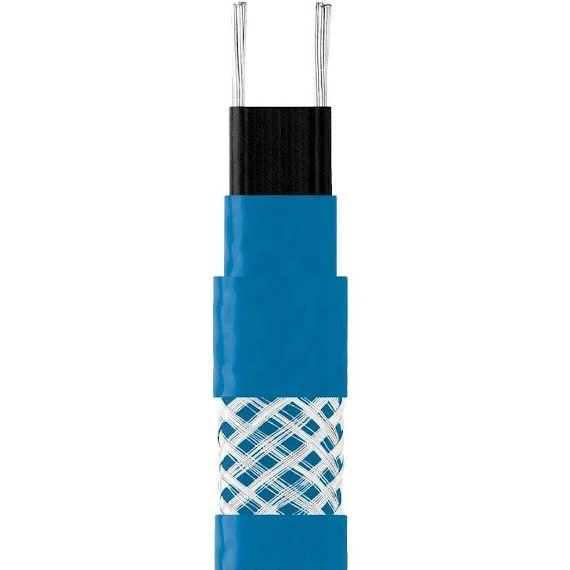

19BZ83 is a self-regulating heating cable with a tinned copper metal braid. Heating cable automatically adjusts heat output based on surface and ambient temperatures, and is approved for specified hazardous areas. This mid-temperature application cable, ideal for freeze protection and mid-temperature process maintenance, provides a maximum continuous maintenance temperature of 250° F (120° C). Intermittent exposure temperature ranges from -40° F to 366° F (-40° C to 185° C). Moisture-, chemical- and flame-resistant, cable operates at 120 volts with an output wattage of 15 watts/ft (45 watts/m). Product is sold by the foot (minimum 50′ roll), can be cut to preferred length and terminated in the field. No temperature controller is required.

Key benefits:

• Automatically adjusts heat output based on surface temperature and ambient conditions
• Dimensions: 0.2″ x 0.6″ (6mm x 15mm)
• 43 lbs. (19kg) per 500′ (152m) spool
• 15w/ft (45 W/m)
• Designed for dry environments
• Safe to overlap and insulate
• FM Approved: Non-Hazardous locations or Hazardous locations CIID2, Groups F, G; 3, 5, 8w/ft T6; 10w/ft T5
• CSA Approved: Non-Hazardous locations 130-03 (-G, -W, -S); 3, 5, 8w/ft T6; 10w/ft T5
• ATEX Approved: Hazardous locations Ex e IIC T** II 2 GD Gb; Ex tb IIIC T**° C Db; **3, 5, 8w/ft T5/T85° C; **10w/ft T4/T100° C
• IEC/IECEx Approved: Hazardous locations Ex e IIC T** II 2 Gb; Ex tb IIIC T**° C Db; **3, 5, 8w/ft T5/T85° C; **10w/ft T4/T100° C
• Made in the USA
