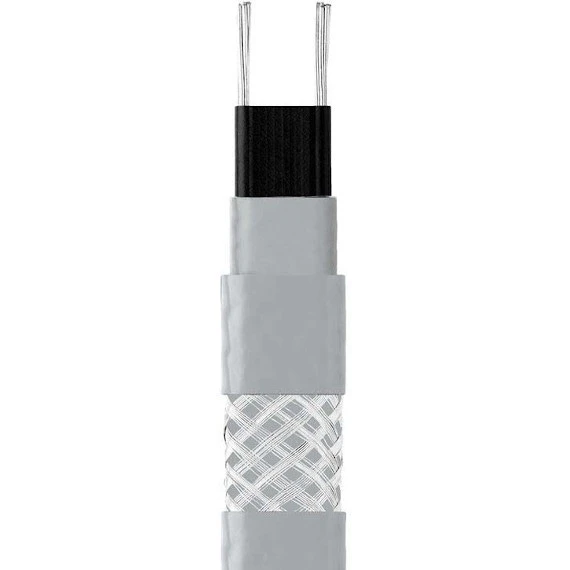

BriskHeat® 3 W/ft Low-Temperature Self-Regulating Heating Cable, Hazardous Area, Stainless Steel Braid, 240v

19BZ66 is a self-regulating heating cable with a stainless steel metal braid. Heating cable automatically adjusts heat output based on surface and ambient temperatures, and is approved for specified hazardous areas. This low-temperature application cable, ideal for freeze protection and low-temperature process maintenance, provides a maximum continuous maintenance temperature of 149° F (65° C). Intermittent exposure temperature ranges from -20° F to 185° F (-29° C to 85° C). Moisture-, chemical- and flame-resistant, cable operates at 240 volts with an output wattage of 3 watts/ft (10 watts/m). Product is sold by the foot (minimum 50′ roll), can be cut to preferred length and terminated in the field. No temperature controller is required.

Key benefits:

• Automatically adjusts heat output based on surface temperature and ambient conditions
• Dimensions: 0.4″ x 0.2″ (11mm x 6mm)
• 40 lbs. (18kg) per 500′ (152m) spool
• Output wattage: 3w/ft (10w/m)
• Designed for dry environments where enhanced corrosion resistance is necessary
• Safe to overlap and insulate
• Safe for indoor or outdoor use
• Ideal for long runs
• FM Approved: Non-Hazardous locations or Hazardous locations CIID2, Groups F, G; 3, 5, 8w/ft T6; 10w/ft T5
• CSA Approved: Non-Hazardous locations 130-03 (-G, -W, -S); 3, 5, 8w/ft T6; 10w/ft T5
• ATEX Approved: Hazardous locations Ex e IIC T** II 2 GD Gb; Ex tb IIIC T**° C Db; **3, 5, 8w/ft T5/T85° C; **10w/ft T4/T100° C
• IEC/IECEx Approved: Hazardous locations Ex e IIC T** II 2 Gb; Ex tb IIIC T**° C Db; **3, 5, 8w/ft T5/T85° C; **10w/ft T4/T100° C
• Made in the USA
