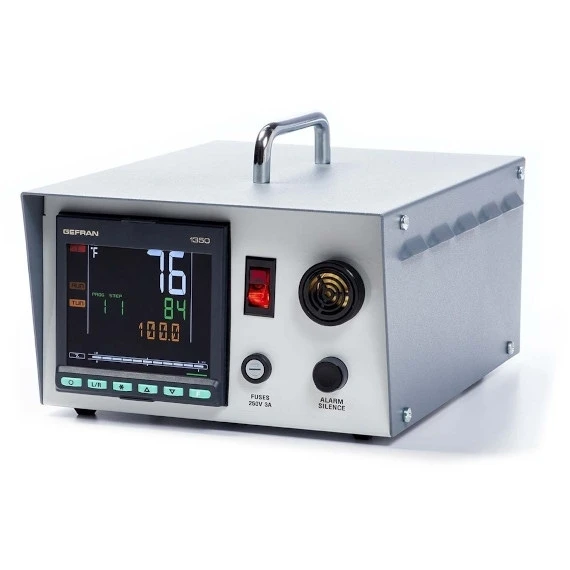

BriskHeat® Table Top Composite Curing Temperature Controller W/Built-In Thermocouple Input, 120v

19BZ46 is a 120-volt table top composite curing controller that provides basic temperature control for composite curing applications. Used with composite curing heating blankets, controllers provide composite and metal bond curing for equipment in the aviation, marine, automotive and construction industries. Portable controller is lightweight, can be controlled automatically or manually, and incorporates both visual and audible alarms. Controller incorporates a built-in high limit thermocouple input. Dual display shows set-point and actual temperature. Unit features eight-segment ramp/soak control.

Key benefits:

• Provides temperature control up to 400° F (204° C)
• Features eight-segment ramp/soak control
• Allows automatic tuning of PID parameters
• 14 programmable alarm types
• Accepts standard and mini Type J thermocouple connectors
• Built-in high limit thermocouple input
• Features sensor break protection
• Controllers feature a NEMA L15-30 receptacle
• 6′ (1.8m) long input power cord
• Made in the USA

Contents include:

• Table top controller unit
• One 20′ Type J Thermocouple
• One 10′ heater output cord
