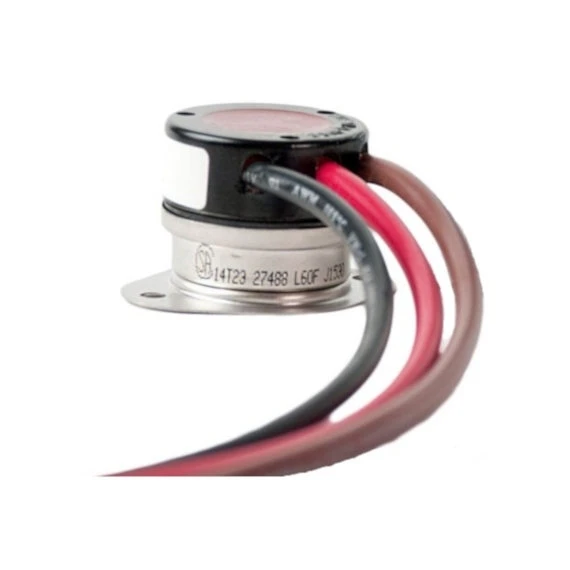

BriskHeat® TD101 Automatic Thermostat Temperature Controller, On: 185° F / Off: 200° F

19B667 is a BriskHeat® automatic On/Off thermostat controller with an on temperature of 185° F (85° C) and off temperature of 200° F (93° C) for ordinary locations. This thermostat control is ideal for individual circuits requiring a weatherproof device. Mounting directly to the heated surface, common applications include temperature control on heat tracing and as an overtemperature limit switch in conjunction with another control system.

About BriskHeat® TD101N / TD101X Automatic On/Off Thermostat Controllers
BriskHeat® TD101 automatic on/off thermostat controllers are thermostats ideal for individual circuits that require a weatherproof device. These controllers can be mounted directly to the heated surface and are available in multiple temperature range choices to fit your application. TD101 controllers feature a single pole double throw (SPDT) and temperature sensitive bimetal disc.

Common applications include use as an external alarm or over-temperature limit switch in conjunction with another control system as well as temperature control on heat tracing and process fluid system applications. TD101X series models are suitable for a Class I Division 2 hazardous areas with an integral 3/4″ (19mm) NPT male conduit fitting.

The mounting bracket is 304 stainless steel with two 0.17″ (4.3mm) diameter holes for convenient mounting. The black phenolic housing is hermetically sealed. Maximum exposure temperature is -40° F (-40° C) to 221° F (105° C). Our on/off thermostat controllers have a 4′ power lead.

Key benefits

• Weatherproof device
• Mounts directly to heated surface
• Single pole double throw (SPDT)
• Temperature sensitive bimetal disc
• Rated 25 Amps: up to 277VAC (UR) & 25 Amps: up to 240VAC (CSA)
• SS304 Mounting bracket with two 0.17″ Dia. holes
• 4′ (1.2m) power lead
• Average accuracy of +/- 15° F (8° C)
• TD101X have Integral 3/4″ (19mm) flexible Male NPT conduit fitting
