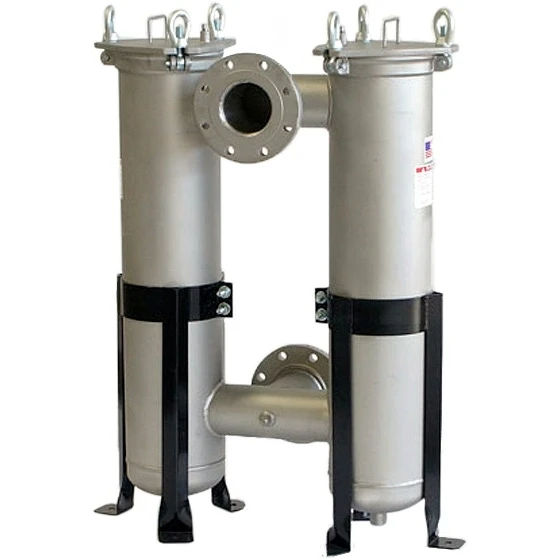

Dual Bag Filter Housing – Size #2 – 30″ Basket – Aluminum (Configurable)

Size #2 aluminum bag housings feature a 30″ basket depth and are economic as they offer greater dirt holding capacity and higher flow rates than single filter vessel alternatives. This configurable aluminum housing has a top loading system with an easy-to-use cover that can be removed without the need for additional equipment or tools. Aluminum is an economic alternative compared to stainless steel or carbon steel alternatives and can often offer superior results depending on filtration application. Dual capacity vessels can function as basket strainers or bag filters depending on configuration.

The Cary Company’s size #2 aluminum dual bag filter housings have low pressure drops, heavy-duty baskets, O-ring sealed covers and adjustable-height legs. Additional options include extra-length legs, liquid displacers for easier servicing, sanitary connection, DP ports and 316 stainless steel basket perforation. This size #2 dual strainer vessel is configurable with NPT or flange styles and can be customized up to 440 gpm depending on fluid viscosity, bag filter, dirt loading, etc. Configure this size #2 dual housing to your meet the specific requirement of your filtration or straining application.

Key benefits:

• Greater dirt holding capacity and higher flow rates than single filter vessel alternatives
• Up to 440 gpm
• Eye bolt cover can be easily removed without the need for special equipment or tools
• O-ring sealed covers available in fluoroelastomer (FKM), ethylene polypropylene (EPR), Buna N, PTFE, etc.
• Heavy-duty baskets
• Easy to clean
• Pipe sizes 1″ to 3″ Female NPT & 150 ANSI Flange
• Proudly Made in the USA
