IBC Tote Pump W/48″ CPVC Tube, 1/4 HP TEFC Motor, 400 Cps, 10 Gpm (TT Series)

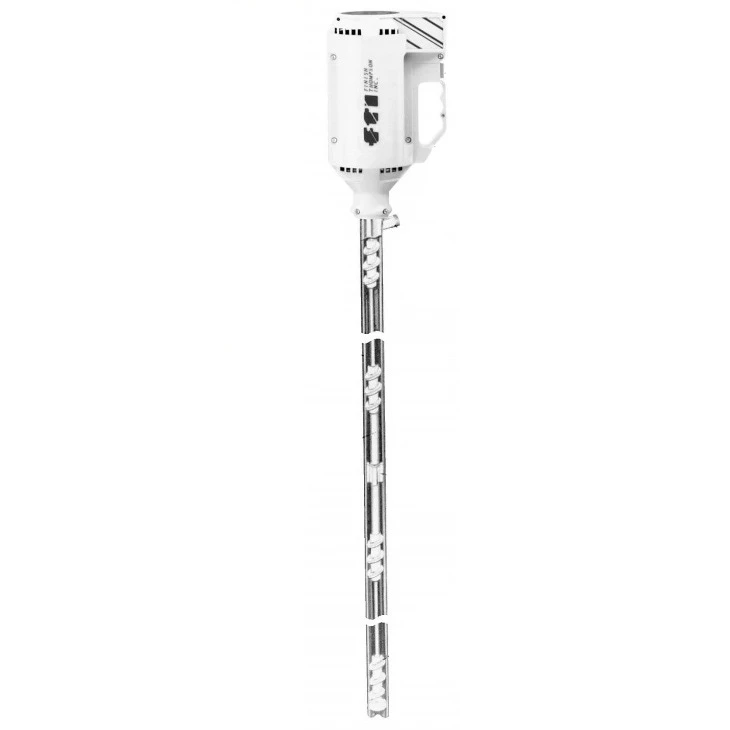

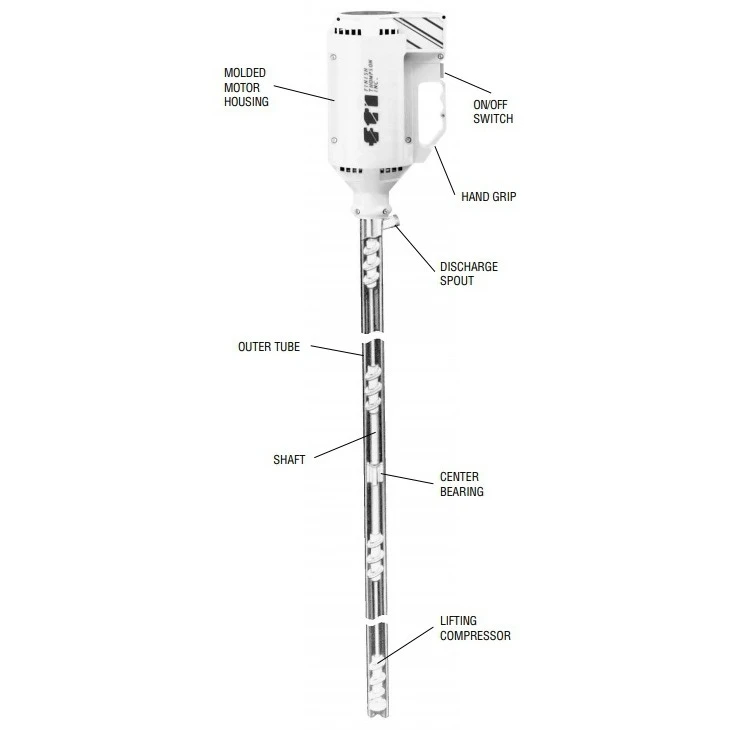

This is a totally enclosed fan cooled (TEFC) motor drum pump with a 1.63″ Dia. x 48″ L chlorinated polyvinyl chloride (CPVC) tube and a max flow of 10.0 gpm and max viscosity of 400 cps. This 30 gallon drum or carboy pump is suitable for semi-viscous liquids up to 150° F and can handle many corrosives, flammables, etc. in pure applications. The max specific gravity of this sealed drum pump is 1.80. With a smaller diameter, this drum pump tube can fit smaller bung openings.

The TEFC motor offers increased protection against dirt and moisture compared to open electric motors as it does not allow outside air to circulate freely throughout the interior of the motor. These motors tend to have a longer lifespan compared to open drip proof (ODP) motors. Tote pumps can provide container-to-container liquid transfer when the tote is too heavy to lift. The plastic tube is 48″ for use with 275 gallon IBC totes and other similar-sized containers. CPVC has good chemical resistance allowing for this pump to be chemically compatible with a wide range of liquids. The discharge connection is a 1″ hose barb. This tote pump is sealed making it ideal for pure applications.

Key benefits:

• Totally enclosed fan cooled (TEFC) motor
• CPVC plastic tube
• Sealed unit
• For use with containers with less than 48″ depth
• Suitable for semi-viscous liquids & pure applications
• For use up to 150° F | 66° C
• Max flow 10.0 gpm
